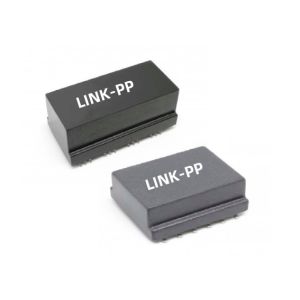

100Base-TX SMT High Isolation Transformer HX1332NL HX1332CNL

Product Categories

LINK-PP INT'L TECHNOLOGY CO., LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 100BaseTX SMT High Isolation Transformer HX1332NL HX1332CNL
Brand: LINK-PP
Price: 0.09 USD

Brand Name : LINK-PP

Model Number : HX1332CNL

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 200/1000 pcs

Price : $0.09-$2.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 5KK/Month

Delivery Time : Stock

Packaging Details : Tape & Reel

P/N : HX1332NL / HX1332CNL

Transformer Function : Isolation and Data Interface

Turns Ratio : 1CT : 1CT

Temperature : -40°C ~ 85°C

Mounting : SMT

Length : 25.4 mm

Width : 17.2 mm

Height : 10.6 mm

Contact Now

Part Number	HX1332NL	HX1332CNL
Data Rate	100Base-TX	100Base-TX
Number of Channels/Ports	1	1
PoE	15W 2Pair	30W 2Pair
PIN	16	16
Operation Temperature	-40℃ to +85℃	-40℃ to +85℃
Safety Insulation	REINFORCED	REINFORCED
Working Voltage	400V	400V
Isolation	4000Vrms / 60sec	4000Vrms / 60sec
Inductance	200uH min	350uH @ 8mA
Construction	OPHD	OPHD
Reinforced Insulation Class	2MOOP / 1MOPP	2MOOP / 1MOPP
Creepage and Clearance (min)	8.0 / 6.4mm	8.0 / 6.4mm
Insertion Loss (MAX)	0.1 -30MHz: -1.0dB 60-80MHz: -4.0dB 100MHz: -	0.1 -30MHz: -1.0dB 60-80MHz: -3.0dB 100MHz: -4.0dB
Return Loss (MAX)	1-30MHz: -10dB 40MHz: -8dB 60 / 100MHz: -	1-30MHz: -9dB 40MHz: -7dB 60 / 100MHz: -4.5 / -2dB
DCMR(MIN)	1MHz: -50dB 30-60MHz: -36dB 100MHz: -31.5dB	1MHz: -50dB 30-60MHz: -35dB 100MHz: -30dB

1. Material: Black Conductive Polystyrene
2. Components per Reel: 200 pcs
3. Quantity per box: 5x reels = 1000 pcs

Product Tags:

HX1332CNLT Ethernet Transformer
